Artec Leo 3D scanning helps Vorteq create “world’s fastest” cycling skinsuits for Olympic athletes

January 6, 2022| Alex


Sports performance brand Vorteq has turned to Luxembourg-based 3D scanner manufacturer Artec 3D to create custom-fitted aerodynamic skinsuits for cyclists.

Using a combination of Artec’s Leo 3D scanner, wind tunnels and engineering, Vorteq has designed what it claims to be one of the “world’s fastest” cycling skinsuits. The skinsuits are currently being worn by five different Olympic athletes at this year’s Tokyo Olympics, and are designed to be lightweight, breathable, and significantly reduce drag.

“Our mission is to help serious athletes, many of whom are already at the top of their game or near, find those many ‘tiny’ gains that when you add them all together, can really give an athlete the kind of edge that helps them surge over the top and on to victory,” said Sam Quilter, Metrology Engineer at Vorteq. “In contrast to our previous scanners, Leo gives us that flexibility to just pick up and go virtually anywhere in the world to do scanning, without requiring extra hardware, just the Leo itself.

“This kind of freedom is tremendous when you’re going offsite to random locations that aren’t exactly laboratories in regards to their conditions.”

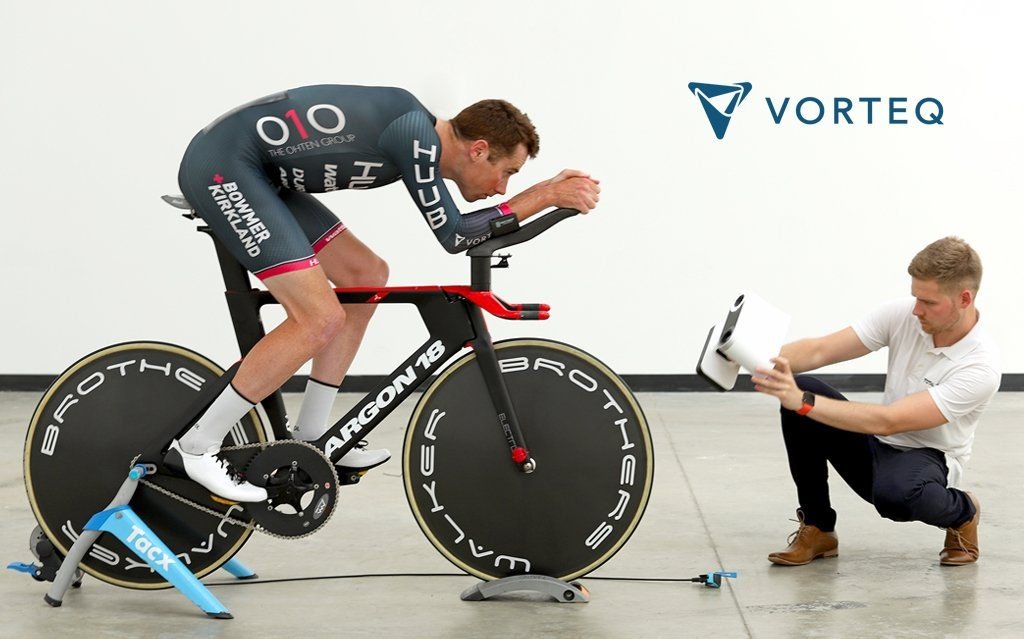

Metrology Engineer Sam Quilter 3D scans a rider with Artec Leo. Image via Vorteq.
Metrology Engineer Sam Quilter 3D scans a rider with Artec Leo. Image via Vorteq.

Arctec 3D scanning

A serial shortlister in the 3D Printing Industry Awards – for which nominations are still open for this year’s event – Artec 3D’s product line includes its Eva, Space Spider, Leo and Ray scanners, used for a variety of different purposes.

Artec’s scanners have previously been used for the reverse engineering of components for Marinebedrijf Koninklijke Marine, the material and asset maintenance company of the Royal Netherlands Navy, and to digitally preserve a 26-foot-long stegosaurus in the Denver Museum of Nature & Science by Triebold Paleontology.

The firm’s scanners also have additionally been leveraged in the automotive sector for vehicle restoration, and to create full body 3D scans of dolphins, sharks, and large turtles to create customized tracking tags offering information on migration patterns and the effects of ocean temperatures.

Artec Leo 3D scanner with Artec Studio software displaying scan of rider at Silverstone Sports Engineering Hub. Image via Vorteq.
Artec Leo 3D scanner with Artec Studio software displaying scan of rider at Silverstone Sports Engineering Hub. Image via Vorteq.

3D scanning for aerodynamics

In the world of high-performance cycling, speed is everything, with mere fractions of a second often separating success and failure. On the track, cyclists battle wind resistance and drag with each turn of the pedals, and with reportedly up to 90 percent of a cyclist’s energy output being spent to overcome air resistance, reducing this drag is key.

Vorteq is making use of the Silverstone Sports Engineering Hub (SSEH)’s sports-dedicated and fabric wind tunnels and the latest 3D scanning technology to create custom skinsuits for cyclists that reduce this air resistance, but that are also comfortable, lightweight, and breathable.

Artec 3D’s Artec Leo handheld scanner is a crucial element in the design of the skinsuits, and can be used to digitally capture a rider’s exact anatomy in less than six minutes. The scanner has a built-in touchscreen and 44 frames per second capture rate, capable of scanning medium-sized objects, including people, in minutes.

“The rider comes into the wind tunnel with their bike, mounts it in place on the platform, hops on, and in just five to six minutes with Leo, I capture the rider in two positions in precise, high-resolution color 3D,” said Quilter. “Basically this means that in ten minutes I can be totally done with that rider and they can go elsewhere. I’ve got everything I need to design an anatomically-accurate, fast-as-a-bullet Vorteq skinsuit. No chance of a rescan needed. Not once.”

When making its skinsuits, Vorteq works directly from the Artec Leo’s scans, which give the exact physical data of the athlete in order to eliminate inaccuracies and imprecise measurements. The scans are then subjected to a post-processing workflow in Artec’s Studio software, where engineers can double-check the data and remove any rare inaccuracies or unwanted data capture, such as wrinkles.

“From the time an athlete walks in the door and we start scanning with Leo, then using Artec Studio to post-process the scans, followed by 3D modeling work in Geomagic Wrap, and finally exporting the 3D model for use in making a skinsuit, we are looking at about 2 hours total, which absolutely wasn’t possible in the past, not even close,” continued Quilter. “And as far as the total production time for a skinsuit that’s ready to race, currently we’re at 2 days, but that gap is narrowing, and we’re shooting for a 24-hour turnaround time, which we’re sure to hit before too long.”

  Designing and creating Vorteq skinsuits. Image via Vorteq.
Designing and creating Vorteq skinsuits. Image via Vorteq.

Using the Artec Leo, Vorteq is also able to 3D print anatomically-precise mannequins of athletes which can be used to create skinsuits for them without having to try them on. The mannequin allows Vorteq to create a custom skinsuit for an athlete, test multiple fabrics and patterns in its wind tunnels, and craft the skinsuit in the hours that follow before delivering it to the athlete’s door. This process currently takes less than two days, although the firm is hoping to accelerate this to just a 24-hour turnaround from 3D scan to completion in the future.

“A full-sized mannequin lets us do wind tunnel tests on fabrics in isolation on just an arm, for example, to see how various fabrics and patterns affect drag reduction,” Quilter explained. “That’s where the marginal gains really add up. Because with a live rider in the wind tunnel, there’s going to be the wiggle factor to deal with, where the rider is moving around, even ever so slightly, and that’s going to affect results. With a live rider, you can never have the exact measurement possible with a perfectly still mannequin, where the only factor that’s changed is the fabric that’s been put on.”

Previously, Vorteq has worked exclusively with Olympic teams and other elite athletes, but as of the beginning of 2020, the firm’s custom skinsuits have been available to cyclists of all levels of experience, enabling them to achieve optimal performance.

Vorteq mannequin components ready for assembly and wind tunnel use. Photo via Vorteq.
Vorteq mannequin components ready for assembly and wind tunnel use. Photo via Vorteq.

How 3D printing is bolstering Olympic performance

Multiple Olympians have previously turned to 3D printing for their personalized gear in order to gain time and weight savings, among other benefits. For instance, Shelly-Ann Fraser-Pryce’s 3D printed running shoes were on display at the last Olympic Games in Rio de Janeiro, and the latest 3D printed 4DFWD midsole from adidas and 3D printer manufacturer Carbon is currently being worn by several athletes at this year’s games in Tokyo.

Previously, the French Cycling Federation has deployed customized handlebars to yield aerodynamic efficiency gains using 3D printing technology, and global engineering firm Renishaw has partnered with Lotus Engineering and Hope Technology to design a new track bike for the Great Britain Cycling team.

Most recently, the Italian national cycling team revealed it has used a Calibry 3D scanner from Russian handheld 3D scanner developer Thor3D to improve its aerodynamics in the lead-up to the Tokyo Olympics.

Nominations for the 2021 3D Printing Industry Awards are now open, have your say who is leading the industry now.

Subscribe to the 3D Printing Industry newsletter for the latest news in additive manufacturing. You can also stay connected by following us on Twitter and liking us on Facebook.

Looking for a career in additive manufacturing? Visit 3D Printing Jobs for a selection of roles in the industry.

Subscribe to our YouTube channel for the latest 3D printing video shorts, reviews and webinar replays.

Featured image shows Metrology Engineer Sam Quilter 3D scans a rider with Artec Leo. Image via Vorteq.
